The Hydraulick Jack, Reinvented

Packer   Jack

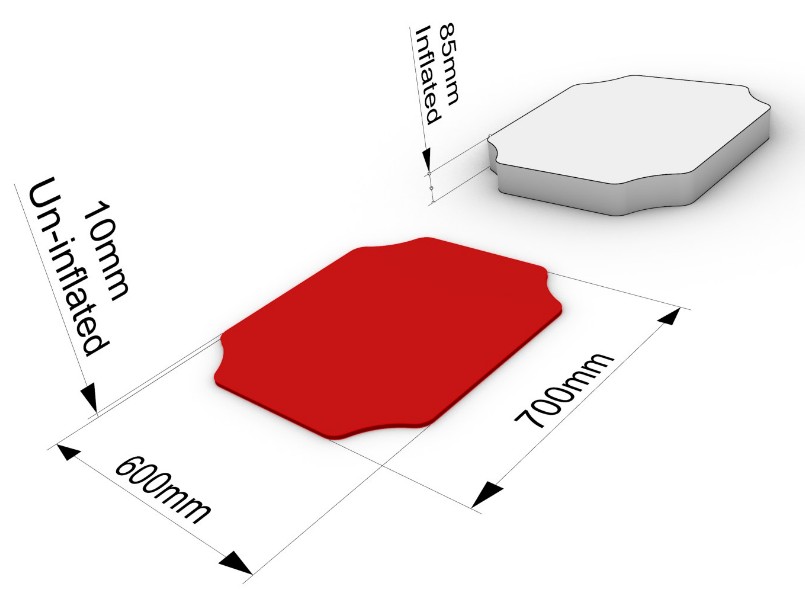

FOUNDATION STABILISATION TOOL (FST)

Feature   →  Specification

Closed Size  →  600mm x 700mm x 10mm

Maximum Expansion *   →   85mm

Material   →   Stainless Steel

Inflation Fluid   →   Water or Epoxy Resin

Weight   →   9kgs

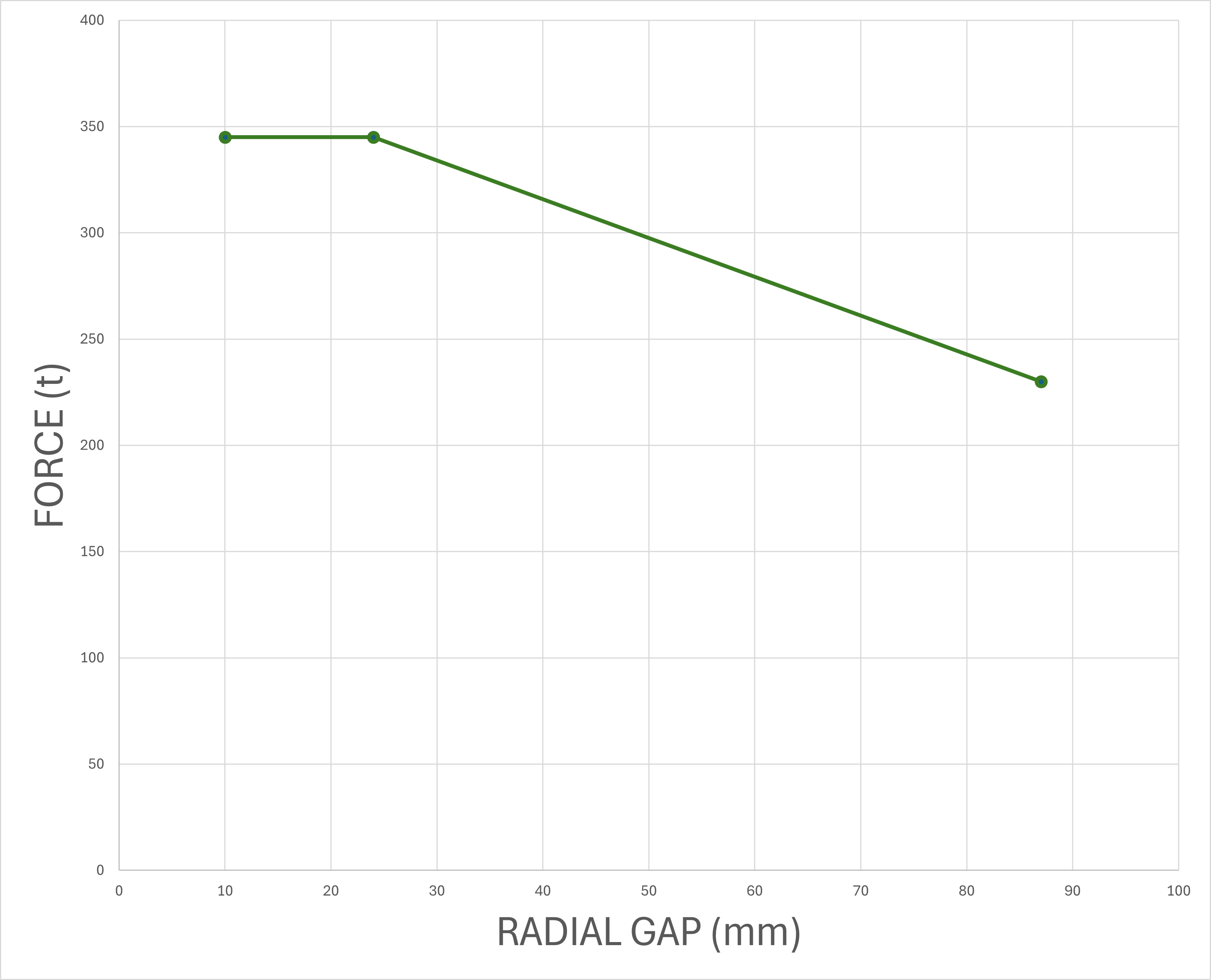

* Force and expansion gap can be higher if multiple units used.

???
???
???

Ultra Compact. High Force

→ Has an uniflated depth of 10mm
→ Inflated with water or epoxy resin
→ High Force
